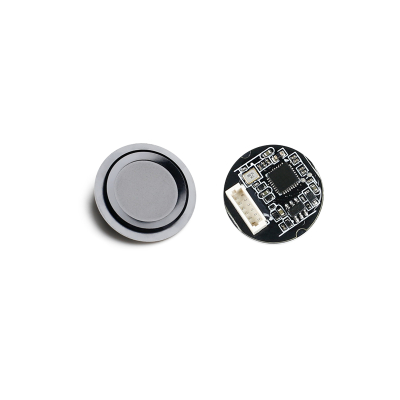

DW232Y
USP:
Fast and accurate fingerprint collection;
Living biometric technology, higher security;
(For details, please go to the Download Section to download)
暂无介绍


Project
Technical Parameter
Module size
Φ17.5mm
Window size
Φ11mm
Grayscale
256level
Acquisition speed
30 frames/s
Data Connections
USART
Operating Voltage
+3.3V
Working current
Acquisition mode
<35mA
Standby mode
5uA
Fingerprint library capacity
100
Search time
<1s@100
Power up time
<=100ms
Interface
6pin, 1.0mm pitch
Interface Protocol
RS232（TTL）
Communication baud rate
115200bps（BR protocol）
Storage temperature
-40℃ - 60℃
Operating temperature
-20℃ - 55℃
Relative humidity
0% - 85%
False recognition rate
<0.001%
Rejection rate
<=1.5%
Comparison Method
1:N
Processing speed
Fingerprint feature extraction time
325ms
1：N comparison time
535ms
Touch situation
Touch function
Yes
Operating Voltage
+3.3V
Quiescent Current
5uA@+3.3V
output level
Highly effective
Supported OS
Embedded，Android，Linux，Wince，Windows etc. operating system
