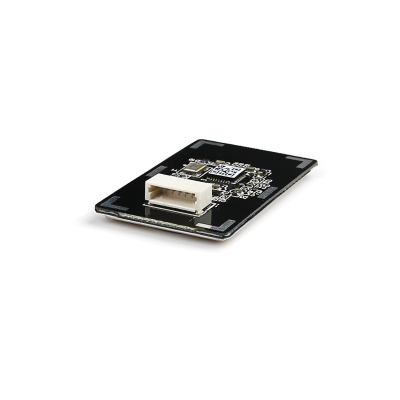

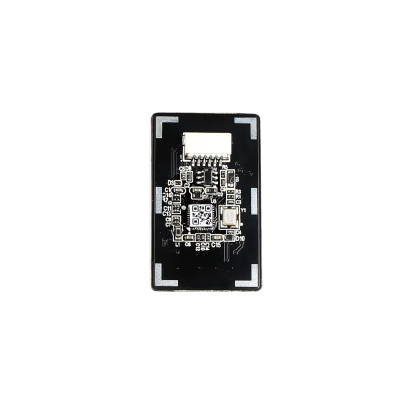

DW264K
USP：
Fast and accurate fingerprint collection， Living biometric technology, higher security;
(For details, please go to the Download Section to download)
暂无介绍

Category
Technical Parameter
Module size
33.1*20.3mm
Window size
11.2*11mm
Grayscale
256level
Acquisition speed
30 f/s
Data Connections
USART
Operating Voltage
+3.3V
Workingcurrent
Acquisition mode
<35mA
Standby mode
<15uA
Fingerprint library capacity
100
Search time
<1s@30
Power up time
<80ms
Low power function
no
Interface
7pin, 1.25mm pitch
Interface Protocol
RS232（TTL）
Communication baud rate
115200bps（BR protocol）
Storage temperature
-40℃ - 60℃
Operating temperature
-20℃ - 55℃
Relative humidity
0% - 85%
False recognition rate
<0.001%
Rejection rate
<=1.5%
Comparison Method
1:N & 1:N
Processing speed
Fingerprintextraction time
<200ms@xAlg
1：1 comparison time
<10ms@xAlg
1：N comparison time
535ms@xAlg
Touch situation
Touch function
Yes
Operating Voltage
+3.3V
Quiescent Current
5uA@+3.3V
Output level
Highly effective
Supported OS
Embedded，Android，Linux，Wince，Windows etc. operating system
