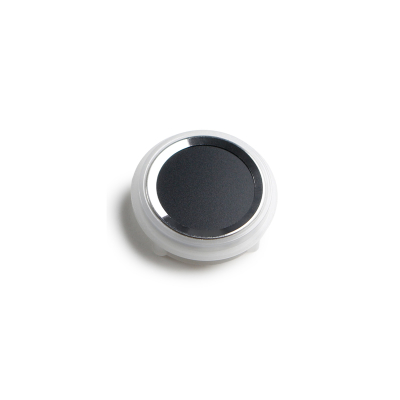

DW543E
USP:
Fast and accurate fingerprint collection，Living biometric technology, Safe and Reliable
(For details, please go to the Download Section to download)
暂无介绍
Category
Technical Parameter
Module size
R10.5mm
Window size
R7.5mm
Grayscale
256level
Acquisition speed
30 f/s
Data Connections
USART
Operating Voltage
+3.3V
Working current
Acquisition mode
<60mA
Standby mode
5uA
Fingerprint library capacity
100
Search time
<1s@100
Power up time
<90ms

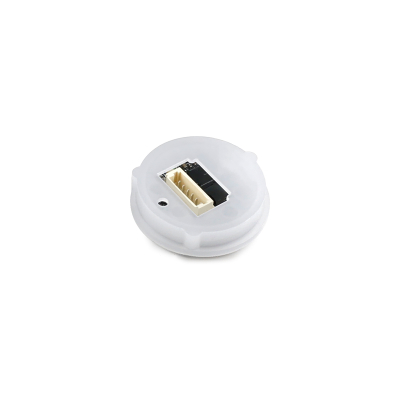

Interface
6pin, 1.0mm pitch
Interface Protocol
RS232（TTL）
Communication baud rate
115200bps（BR protocol）
Storage temperature
-40℃ - 60℃
Operating temperature
-20℃ - 55℃
Relative humidity
0% - 85%
False recognition rate
<0.001%
Rejection rate
<=1.5%
Comparison Method
1:N
Processing speed
Fingerprintextraction time
365ms@xAlg
1：N comparison time
535ms@xAlg
Touch situation
Touch function
Yes
Operating Voltage
+3.3V
Quiescent Current
5uA@+3.3V
Output level
Highly effective
Supported OS
Embedded，Android，Linux，Wince，Windows etc. operating system
