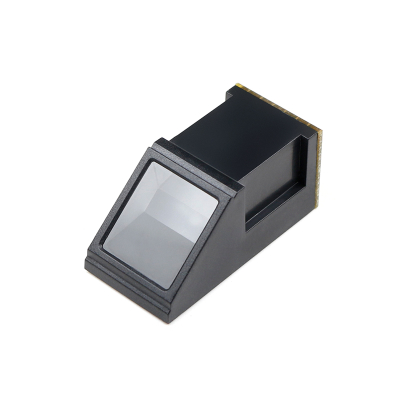

DW611D
USP：
Fast and accurate fingerprint collection，Living biometric technology, higher security;
(For details, please go to the Download Section to download)
暂无介绍

Category
Technical Parameter
Module size
17.36mm(W)×19.2mm(H)
Acquisition head size
47.81mm(L)×22 .02mm(W)×20 .00mm(H)
Resolution
500dpi
Image size
256*288
Grayscale
256level
Acquisition speed
30 f/s
Operating Voltage
+3.3V/+5V(default +3.3V)

Working current


Acquisition mode
120mA
Standby mode
43mA
Sleep mode
6.0uA
Fingerprint library capacity
128~512 (default 256 )
Security Level
Level 5
Power up time
<250ms
FLASH capacity
1M byte
Interface
USB (4pin, 1.25mm pitch)
RS232 (TTL, 7pin, 1.25mm pitch)
Communication baud rate
115200bps(BR Protocol)
Storage temperature
-40℃ ~ 60℃
Operating temperature
-20℃ ~ 55℃
Relative humidity
0% ~ 85%
False recognition rate
<0.001%
Rejection rate
<0.1%
Processing speed
Fingerprintextraction time
480ms
1：1 comparison time
22ms
1：N comparison time
80ms/500
Touch situation
Touch function
Yes
Operating Voltage
+3.3V / +5V (default +3.3V)
Quiescent Current
4.0uA@+3.3V6.0uA@+5V
Output level
Active high/active low (default active high)
Supported OS
Embedded，Android，Linux，Wince，Windows etc. operating system
