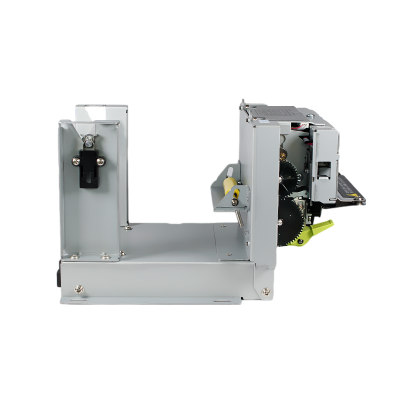

EMD532

80mm -Thermal printing with cutter

USP：

Bracket, printing instructions, SDK and label printing version can be customized;

For details, please go to the Download Section to download

暂无介绍

Performance	Print Method	Thermal Print
	Supported text and graphics	Word, Graphics,Characters,Barcodes,1D,2D
	Print Speed	150mm/s（max）
	Baud Rate	9600、19200、38400、115200
	Resolution	203dpi 384 dot/line
	Paper Type	Thermal Paper
	Service Life	100KM
	Cutter service life	1 million times
	Support OS	Windows、linux、Android
	Print Width	576dots（72mm）
	Paper Standard	79.5 ± 0.5 mm
	Paper thickness	60~120um
	Max outer diameter of paper roll	150mm
	Print Command	ESC/POS
	Character	FONT A	12*24
		FONT B	9*17
		GB18030 Simplified Chinese	24*24
		GB2312 Simplified Chinese	16*16
	Detect	print head temperature	Temperature Sensor
		Lift detection	Micro Switch
		Out of Paper Detection	Mechanical photoelectric sensor
Physical Parameters	Paper Cut	Fully automatic cutting, semi-automatic cutting (optional)
	Operating environment	Temperature：-10°C~50°C；Humidity：20%~80%
	Storage environment	Temperature：15°C~20°C；Humidity：45%~75%
	Interface	USB/RS232（2-in-1）
	Host Size	220136134mm
	Unit Net Weight	1500g
	Working Voltage	24V
	Average current	2A@ 24V(effective print density 25%)
